TRANSTEL

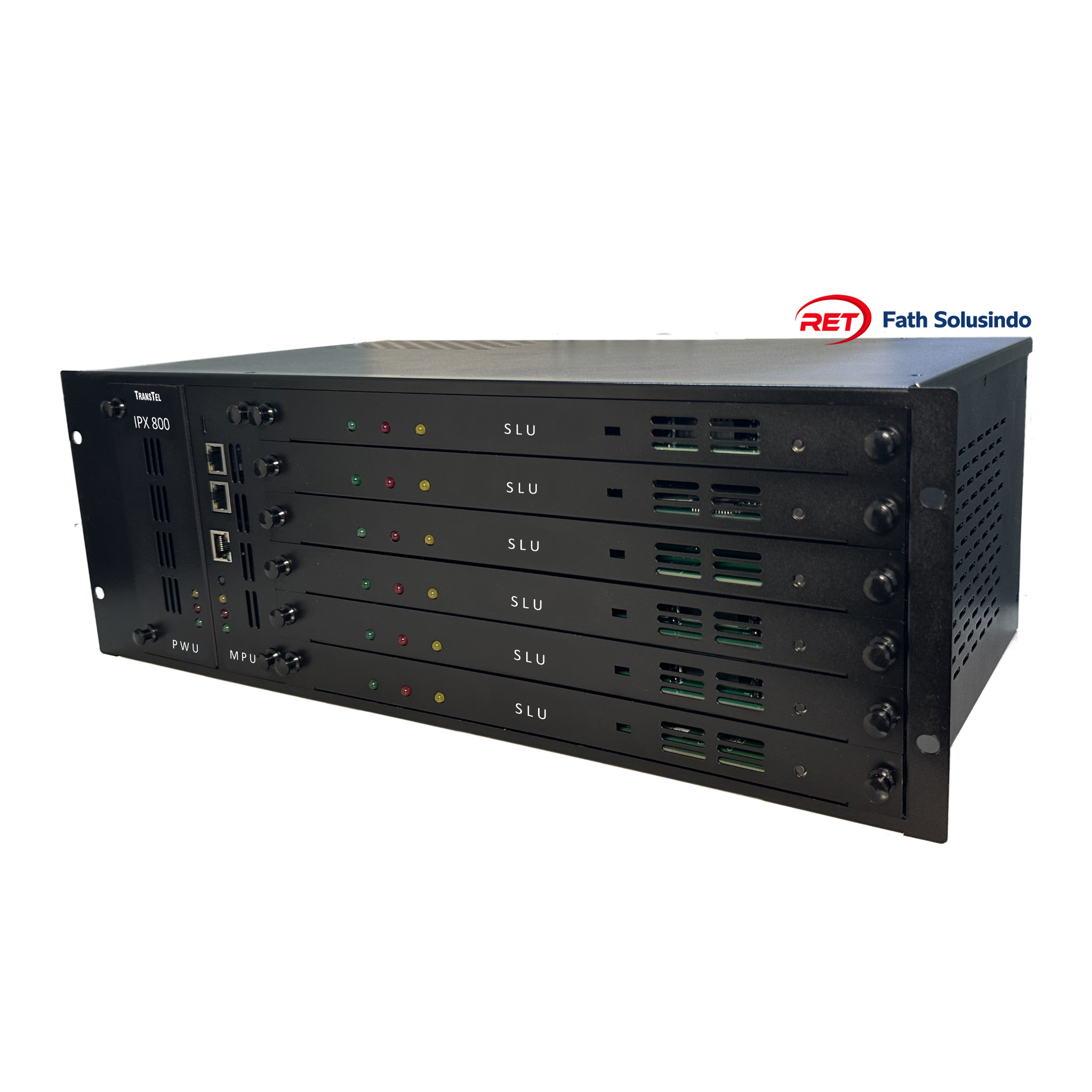

TRANSTEL IPX 800 Hybrid IP PABX

IPX 800 IP switch is a high-quality, highefficiency voice communication service platform, possess advanced technologies of various voice calls, information transmission, and network connection, construct an Internet information network with multipoint connectivity for enterprises, hotels and match unique customization. The operating system integrates many commercial software

Specifications

system core CPU 32bits 400MHz
128Mb SDRAM
32Mb Nor Flash
128Mb Nand Flash

TRANSTEL IPX 800 Hybrid IP PABX

Capacity

SIP trunk Port: max 30 ports
SIP extension: basic 25 seats (Max : 100)
Max hardware port: 24 ports/3 expansion slots for
FXS (Analog phone): 0-24 ports
FXO (Analog trunk): 0-24 lines
RS232port: DB9 pin male connector
WAN port: 10/100M RJ-45
LAN port: 10/100M RJ-45
USB port: USB2.0
OPT button: for USB flash disk detection
RUN LED: system running indicator
Reset button: System reset Audio in: external audio source input
Audio out: External paging output
Control connector: a relay /ALU for NO/NC control
Power input: AC 110~240V 50/60Hz 1.3A
Power output: DV 24V, 3.75A
Package Dimensions: 550*140*400mm (L x W x H)
Product Dimensions : 480*280*67mm (L x W x H)
